Integration using Azure service topics with D365F&O, using Azure functions: a strategy, Part-2



For creating a service bus namespace, topic, subscription and automatic data filtration, please follow my previous blog: https://subsd365.blogspot.com/2023/07/integration-using-azure-service-topics.html

Ok, all set? Let us now explore how to consume the message received from Service bus to D365FO, using Azure Functions.

Step 1: Creating the Azure function

In your Visual Studio (alternately you can also use Visual Studio Code) -- create new project --> in the template search for  Azure function, the following screen appears:

Select Function = Service Bus Topic Trigger.
Here Topic name is = is the name of my topic which I created in my service bus, subscription name is the name of my subscription which I created.


In the Connection String property, just write: sbConStr for now. Will explain what's this in the next point.
Click create to continue.

Step 2: Getting the connection string
To get the connection string, go to Azure Functions --> Shared Access Policies:





 Click on the same. The following screen opens:



Copy the 'Connection string' value by clicking on the highlighted icon. Come back to VS --> Go to LocalSettings.JSON --> Create a new entry called 'sbConStr' as below:


Consequently your code now looks like this:


You can refer to videos for parsing incoming JSON payloads to feed into D365FO from the following video links:
The first session link -https://lnkd.in/dknijQmG
The Second Session link - https://lnkd.in/dphaMR8H

Consequently when I am sending the following message in my Service bus explorer,
with the label = SalesPool:


It lands successfully in D365FO as:

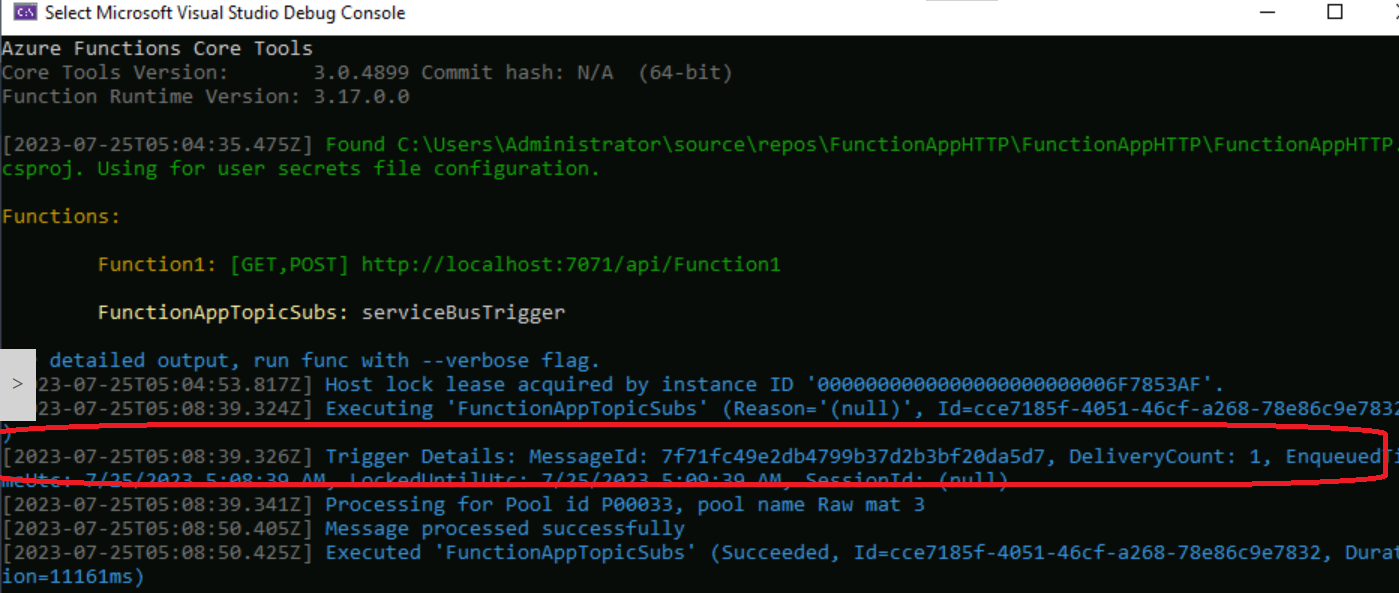

The console of your VS registers the message you have posted as:


So much for today. See you soon with a new idea. Keep daxing, keep Azuring !!!
